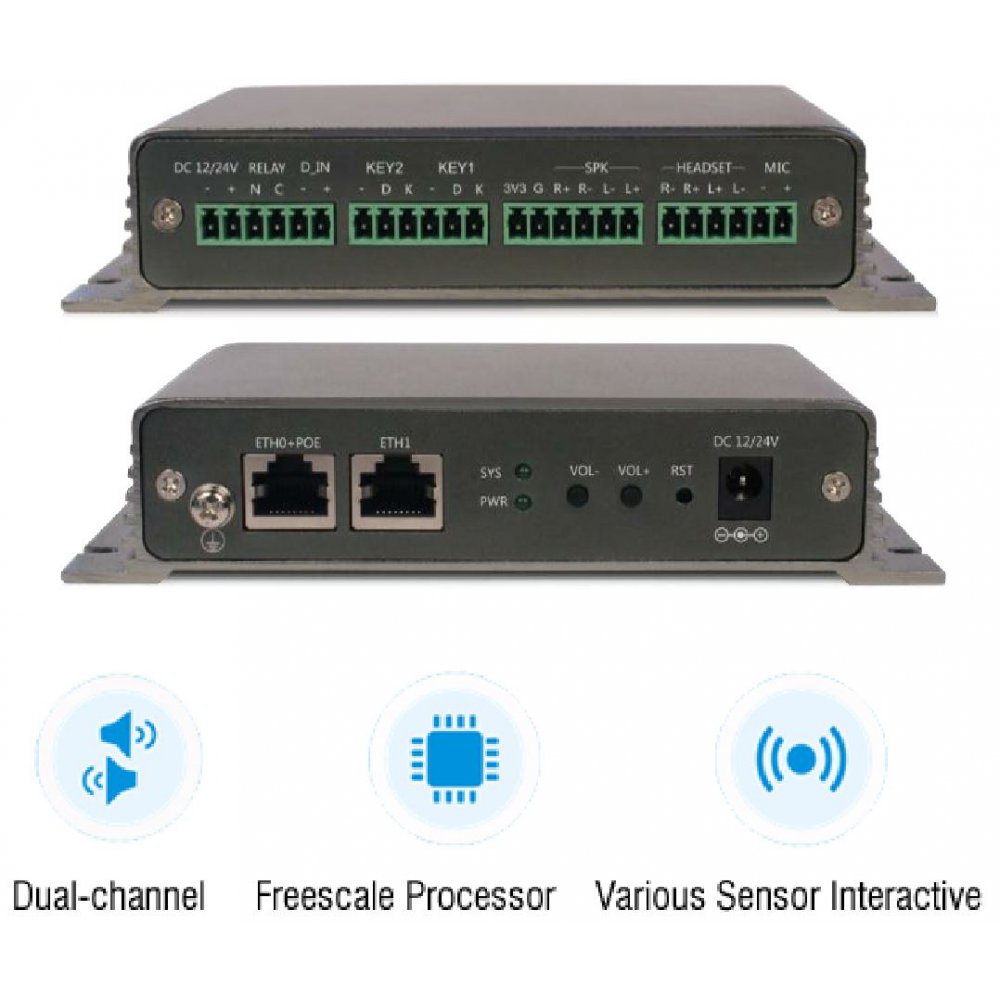

Zycoo X20 SIP Public Address Gateway

225,58  Iva Inc.

6 em stock

O X20 é um dispositivo endpoint SIP PA inovador desenvolvido pela equipe europeia da ZYCOO. Ele converte fluxos de voz de um sistema de paging SIP ou IPPBX em sons analógicos, adequados para música de fundo, endereço público, intercomunicador, etc.

O X20 é baseado em padrões SIP abertos, fazendo com que funcione perfeitamente com o sistema ZYCOO Paging e Intercom. E o mais importante, o X20 também pode ser implantado com a maioria dos sistemas SIP PA e IPPBX de terceiros que suportam o protocolo SIP.

6 em stock


Features and Benefits

Powerful Amplifier
Built-in amplifier rated at 2x10W dual-channel output, no external amplifier required.

Peripheral Support
X20 can be connected with various peripherals, such as smoke sensors, infrared sensors, door magnet, sound and light alarm for public safety and security purpose.

Simple Installation and Configuration

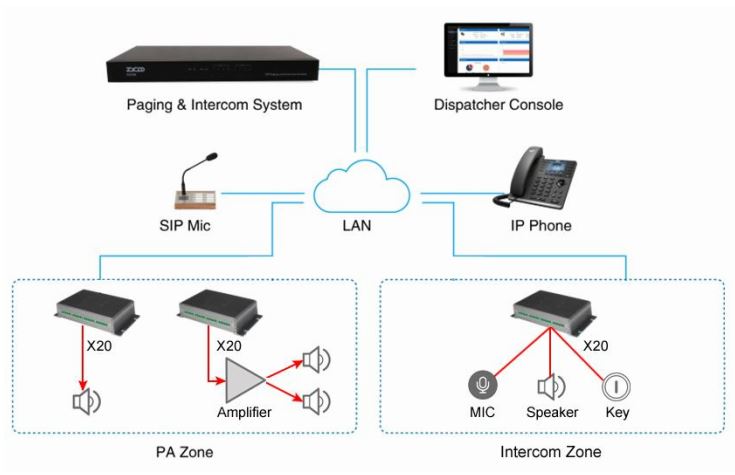

Combined with MX500 SIP paging and intercom system, X20 can be auto detected within LAN. Register number and intercom number can be distributed centrally from MX500 Web interface.

Compatible with Third Party Systems
If you have an existing IP PBX system then you may easily integrate X20 PA gateways into your phone system just like a standard IP phone.

Multicast Support
Background music is streamed to X20 for local decoding and playback. Dual-channel high definition audio quality is guaranteed.

Intercom Calling
X20 supports up to 2 programmable buttons which can be used as “Press-to-Talk” keys, and therefore with an external speaker and microphone it can undertake intercom calls.



  • Speaker Output: 2x10W, 8O
  • Headset Output: 40mW, 16O
  • Microphone: Support


  • SIP2.0 (RFC3261)


  • Support 4×4 16-key keypad


  • UART Serial LCD (Customizable)


  • Protocol: RTP, RTCP
  • Codecs: G.711(a,u), G.722, G.726, G.729, Speex, etc.

Other Interfaces

  • Power: DC12V-2A / DC24V-1A
  • PoE: 802.3at(48V-30W)
  • ETH0/ETH1: 10/100Mbps (PoE IEEE 802.3at support on ETH0)
  • Serial: RS485
  • GPIO: 2xI/O Signal, 2 Speed-dial Keys
  • Key LED: 2
  • Switching Signal Input: Support
  • Switching Signal Output: Support

Environmental Requirements

  • Operating Temperature: -30°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
  • Humidity: 10% ~ 95%

Dimension: 153x76x33mm
Weight: 400g

Packing List:

  • X20 SIP Paging Gateway (1)
  • M4*10 clamping screws (4)
  • Phoenix connector (4)
  • Mini screw driver (1)
  • Grounding cable (1)
  • Qick Installation Guide (1)
