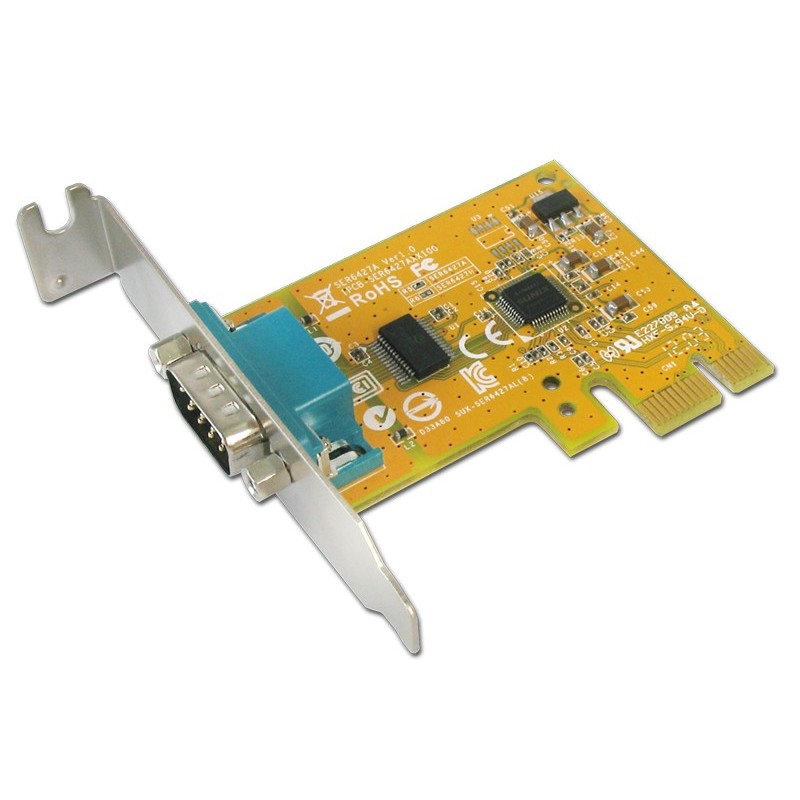

- Expands one independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Low profile bracke
Serial Communication
| Interface | RS-232 |
| No. of Port | 1-port |
| FIFO | 128byte Hardware |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Baud rate | 50bps ~ 115.2Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB Connector | DB9 Male |
